Spiral Welded Steel Pipe for fluid SSAW pipes

Products > Low Pressure Pipe > Spiral Welded Steel Pipe for fluid SSAW pipes

Spiral Welded Steel Pipe for fluid SSAW pipes

Application: Used for low-pressure fluid transmission;





Process:    LSAW - UO(UOE)、RB(RBE)、JCO(JCOE,COE)
DSAW -Double Submerged arc welded
Usage:    Used for low pressure liquid delivery, such as water, gas, and oil.
Standard:    API 5L, API 5CT, ASTM 53, EN10217, DIN 2458. IS 3589, GB/T3091, GB/T9711
Certificate:    API 5L PSL1 / PSL2, API 5CT
Out Diameter:    219mm – 1820mm(8"-72")
Wall Thickness:    5.0 - 50mm
Length:    6 – 12m
Steel Grade:    API 5L:     GR B, X42, X46, X56, X60, X65, X70
ASTM A53:     GR A, GR B, GR C
EN:     S275, S275JR, S355JRH, S355J2H
GB:     Q195, Q215, Q235, Q345, L175, L210, L245, L320, L360- L555
Surface:    Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement
Test:    Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test.
Mill Test Certificate:    EN 10204/3.1B

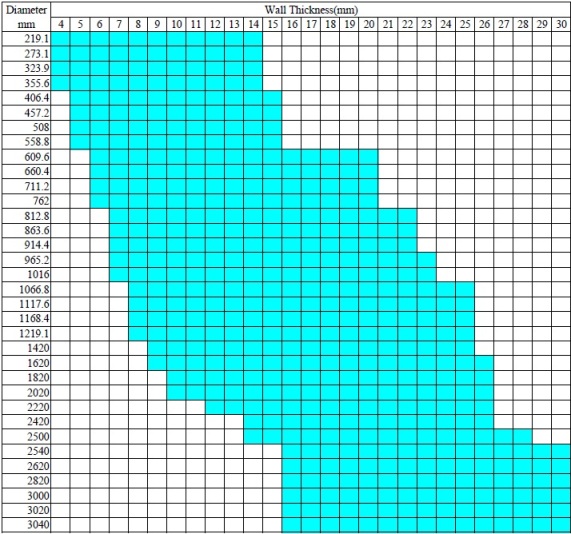

Specification:
